Description
Build Time is 20-25 Business days.

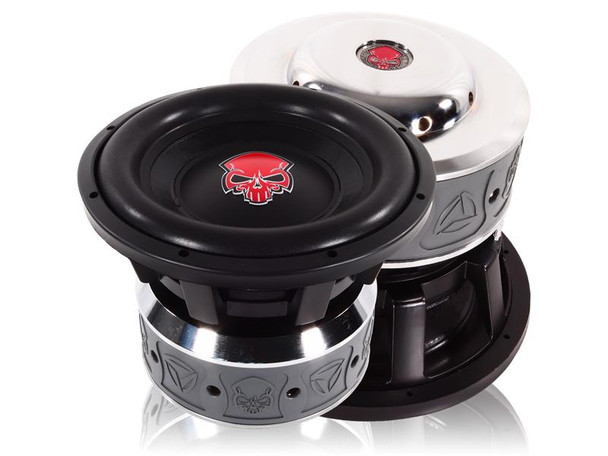

Since 2002, dating back to the beginning of Incriminator Audio, the Death Penalty subwoofer has been a class leader. Being at the top of the game for 15 years is no small feat. Through many generations of updates, Incriminator continues to keep the Death Penalty out in front. If you are looking for a premier ground pounder, your search ends with the Death Penalty. As the signature subwoofer for Incriminator, every aspect of the design is meant for one thing only, that is supreme performance. Not only excelling in the SPL competition lanes, the Death Penalty is a tremendous daily driver subwoofer for the most demanding of audio systems. Conservatively rated at 2000 watts RMS, long-term power handling, both thermally and mechanically, will not be an issue. Advancing on the previous generation, the new Death Penalty continues the S.T.A.R. (Symmetrical Tier Axis Radical Cooling) motor design. What makes this design special is that the motor has the ability to cool very quickly through the channels between the large motor slugs. This is necessary for high power systems playing for long periods. The Air Driven Cooling will extend the life of a subwoofer that can be pushed to the limits. In concert with the powerful S.T.A.R. motor, the Death Penalty employees a heavy gauge 3” flat wound aluminum coil, equaling serious power handling for years to come. Covered in a new, custom-tooled motor boot, the Death Penalty has a vicious, all business look. With a triple progressive spider suspension pack, the Death Penalty can keep its cone under control at all times and withstand loads of abuse. The Death Penalty is available with an optional extra spider and Triple Joint Kevlar Reinforcement if you really plan to take it to the edge. Dual sewn leads, (with the option of 8 gauge direct connect leads) are able to deliver all the current to the coil without break down or noisy lead slap that plague other drivers with fee leads. To top it all off, the trademark Death Penalty Red Skull on the dust cap. It signifies what lies benea it, through history and a winning tradition. Available in Dual 1 and Dual 2 standard as well a 12", 15", 18" and 21" models.
***ALL SUBS ARE BUILT TO ORDER WITH A 20-25 BUSINESS DAY BUILD TIME ONCE ORDER IS PLACED CANNOT BE CANCELLED!***
Specifications | |
---|---|
Driver | 15 Inch |
FS | 40 Hz |
Re | 2Ω Series |
Qms | 8.98 |
Qes | 0.43 |
Qts | 0.4 |
Mms | 275 g |
Cms | 0.05 mm/N |
Sd | 810 cm² |
Vas | 56 L |
Spl | 92.8 dB |
BL | 22.6 |
X-max | 29 mm |
Sub Diameter | 15." |
Mounting | 14.12" |
Depth | 10.74" |
Displacement | .23 Cu. Ft. |
Power | 2000 RMS |
Enclosure Specifications | |||
---|---|---|---|
Minimum Volume | Recommended Volume | Maximum Volume | |
Sealed | N/A | N/A | N/A |
Ported | 3.00ft^3 | 4.00ft^3 | 5.00ft^3 |
Port Opening | 42in^2 (2.70" x 15.50") | 56in^2 (3.60" x 15.50") | 70in^2 (4.50" x 15.50") |
Port Length | 25.50" | 24.50" | 23.75" |
Port Tuning | 35hz | 35hz | 35hz |
Port Displacement | 0.62ft^3 | 0.79ft^3 | 0.96ft^3 |
Sub Displacement | 0.22ft^3 | 0.22ft^3 | 0.22ft^3 |
Subsonic Filter | 32hz - Setting | 32hz - Setting | 32hz - Setting |
Low Pass Filter | 80hz - Setting | 80hz - Setting | 80hz - Setting |
