- GEN-X Full-Range Class D 4-Channel Amplifier 4 x 700 Watts Rms @ 4-ohm
DS18 Audio
GEN-X Full-Range Class D 4-Channel Amplifier 4 x 700 Watts Rms @ 4-ohm
- SKU:
- G8400.4D
- UPC:
- MPN:
- G8400.4D
Description
DS18 G8400.4D
Full-Range Class D 4-Channel Amplifier 8400W
The G8400.4D is engineered to elevate your system to unprecedented levels, daring you to create the system of your dreams.
We have designed the G Series to deliver nothing short of professional-grade sound reproduction. Rest easy knowing that the G8400.4D's stable and reliable Class D circuit design has undergone rigorous sound quality verification using AP Instruments.

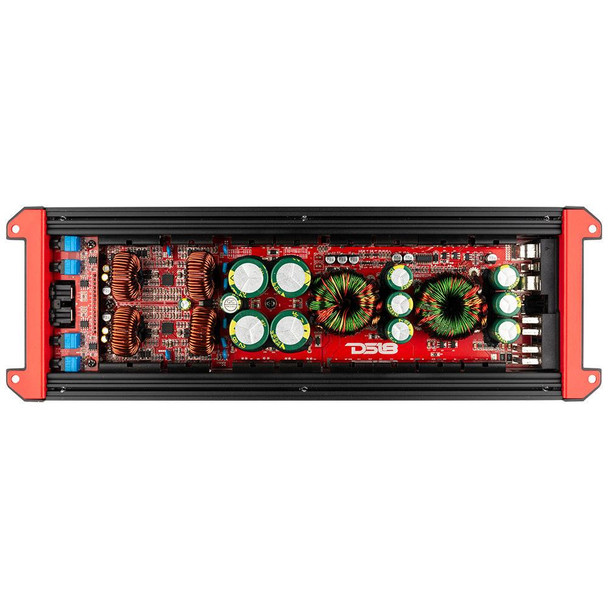

Tune your frequencies just the way you like them with fully adjustable High Pass, Low Pass, and Full Filters, offering you unprecedented control over your audio experience. Variable full crossover filters guarantee crystal clear audio whenever you want it! Surface mount component technology gives you control in customizing the placement and design of the G8400.4D into your build. All of these tools ensure your system gets LOUD and stays there!
With power output settings of 1700W x 2 CH bridged at 4-ohm, 1000W x 4 CH at 2-ohm, and 700W x 4 CH at 4-ohm, the G8400.4D delivers the perfect balance of power and finesse, supercharging any custom build with ease.
Safeguard your equipment effectively with the G8400.4D's Protection, Clipping, and Power Indicator LED's. Stay informed and in control as these indicators alert you when your amplifier approaches its limit, protecting your investment and guaranteeing a long-lasting audio experience. The G8400.4D also features a host of advanced protective features, including short circuit, thermal, and voltage protection, ensuring the safety and longevity of your investment.
Designed for the enthusiast looking for a competitive edge, the G8400.4D delivers unrivaled power, precision, and efficiency, propelling your build to unprecedented heights.
SPECS
SKU
G8400.4D
Class
Digital (D)
Amplifier Type
4 CH Full Range
Channels
4
Peak Power
8400W
RMS Power @ 4 Ohm/14.4V
4 x 700W
RMS Power @ 2 Ohm/14.4V
4 x 1000W
RMS Power @ 4 Ohm/14.4V Bridged
2 x 1700W
Minimum Impedance
2 Ohm St / 4 Ohm Bridge
Operation Voltage
9 - 15V
SPECS
Frequency Response
20Hz-20KHz
Signal/Noise Ratio
>90dB
Low Pass Filter
50Hz - 250Hz
High Pass Filter
50Hz - 250Hz
Subsonic
NO
Subsonic Frequency
N/A
Efficiency @ 4 Ohm
80%
Damping Factor
78
THD %
0.01%
Input Sensitivity
0.25V - 6V
X-Over Filter Range
50-250 Hz
Bass Boost Range
N/A
Bass Boost Frequency
N/A
Phase Selector
NO
SPECS
High Level Input
NO
Selectable X-Over
LPF/FLAT/HPF
Led Indicator
Power / Protection / Clip
Voltage Input Protection
Yes
Clipping Protection
Yes
Thermal Protection
Yes
Cooling Fan
No
Speaker Output Size
12GA
Power Input Size
0GA
Fuse Rating
240A
Remote Level Control
No
Body Color / Finish
Matte black
MEASUREMENTS
Product Weight (lb)
6.5
Product Dimensions L x W x H (Inches)
16.25 x 6.25 x 3.25
M/C Weight (lb)
39
M/C Dimensions L x W x H (Inches)
16.5 x 13 x 10.5
