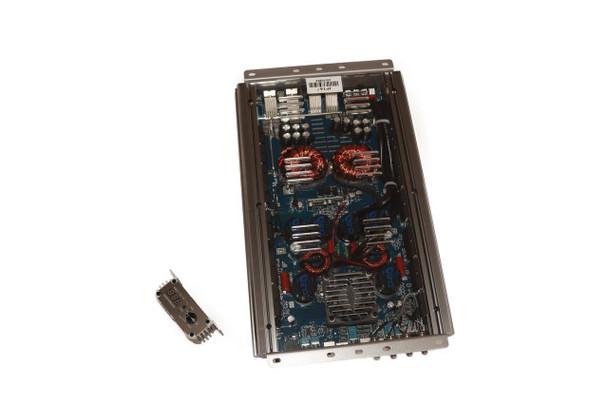

DOWN4SOUND JP16.2 GRAY | 3200W RMS - 2 CHANNEL AMPLIFIER
- SKU:
- JP16.2-GY-
- MPN:
- JP16.2-GY-
Description
Take your car audio system to the next level with the DOWN4SOUND JP16.2 GRAY amplifier. Built for bassheads who demand intense low-end response and crisp highs, this amplifier provides 1600W RMS of pure power, ideal for 1-ohm, 2-ohm, and 4-ohm setups. The sleek gray finish adds a modern touch to your system while delivering unparalleled performance.
Key Features:
- Stable into 1 Ohm Mono Load: Delivers steady, high-power performance even at low impedance.
- Bandpass Capable: Supports various speaker configurations for versatile audio setups.
- 4-Way Protection Circuits: Thermal, high & low voltage, speaker short, and DC protection for safe, reliable operation.
- 2 - 0 Gauge Power/Ground Terminals (4 Total).
- Remote Control Included: Comes with a remote bass knob with voltage, temperature, and clipping indicators.
Specifications:
Output Power:
- 4 ohm RMS Power: 600W x 2ch
- 2 ohm RMS Power: 1200W x 2ch
- 1 ohm RMS Power: 1600W x 2ch
- 4 ohm RMS Bridged Power: 2500W x 1ch
- 2 ohm RMS Bridged Power: 3700W x 1ch
- Tested at 14.4V & 1% THD
- Frequency Response: 10Hz – 22.1KHz
- Signal to Noise Ratio: 80dB
- Damping Factor: 160
- Input Sensitivity: 6V – 0.2V
- High Pass Filter: 20Hz – 800Hz
- High Pass Multiply x1, x10 (200Hz - 8kHz)
- Low Pass Filter: 50Hz – 800Hz
- Low Pass Multiply x1, x10 (500Hz - 8kHz)
- Bass Boost Frequency: 20Hz – 80Hz
- Clip In/Clip Out Indicator
- 41 Click Pots for HPF, LPF & Bass Frequency
- Remote Control with Voltage and Temperature Display, Thermal and Clipping Indicator
- Working Voltage: 9V – 15.5V
- Dimensions: 360mm L x 238mm W x 69mm H (14.17 x 9.37 x 2.71 inches)
