Description

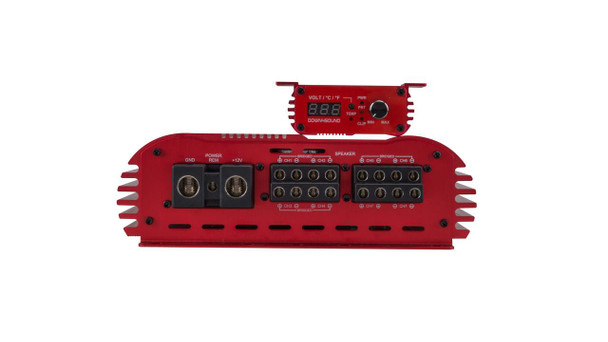

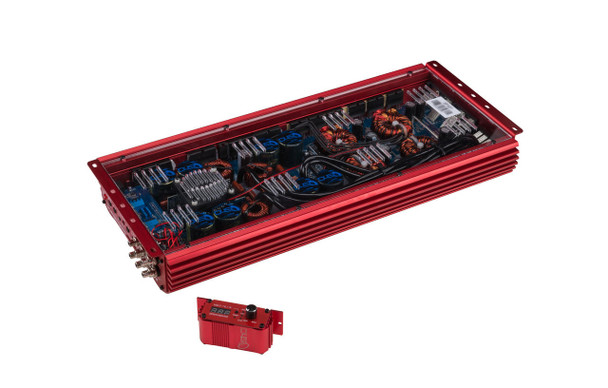

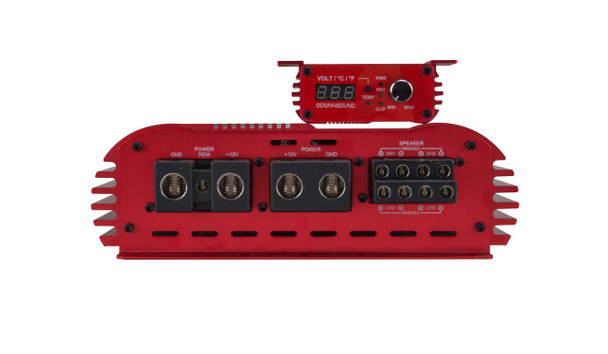

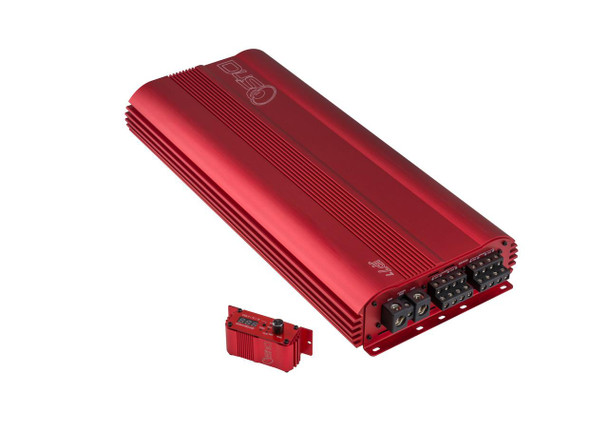

Down4Sound JP77 RED Amplifier: 3000W RMS - 7 Channel Amplifier
Transform your car audio system with the Down4Sound JP77 RED. This 7-channel amplifier is a powerhouse, delivering a massive 3000W RMS. Designed for audio enthusiasts who seek the ultimate in sound quality, the JP77 RED combines high performance with a striking red finish. It's not just an amplifier; it's a revolution in car audio, offering unmatched clarity and power.
Special Highlight: Check out the JP77's impressive capabilities in the amp dyno video available in the VIDEOS tab.
Key Features:
- Superior Sound Quality: Equipped with bandpassable crossovers and premium RCA cables for exceptionally clear audio.
- Deep and Powerful Bass: Features a dedicated 2000W RMS at 1 ohm for bass that is both deep and detailed.
- Durability and Reliability: Built to withstand daily use and maintain consistent performance.
- Origin: Crafted with pride in Korea.
JP77 Technical Specifications:
- RMS Power Ratings:
- 1ohm (CH7): 2000W x1
- 2ohm: 190W x 6 + 1600W x 1
- 4ohm: 120W x 6 + 1000W x 1
- 4ohm Bridged: 350W x 3
- Frequency Response:
- CH1 - CH6: 10Hz - 24KHz
- CH7: 10Hz - 250Hz
- Input Sensitivity: 6V - 0.2V
- Signal to Noise Ratio: 80dB
- T.H.D @ 4ohm: 0.1%
Channel Specific Filters:
- CH1 & CH2: High Pass Filter: 20Hz - 800Hz
- CH3 & CH4: High Pass and Low Pass Filters, Band Pass capability
- CH5 & CH6: High Pass and Low Pass Filters, Band Pass capability
- CH7: Subsonic Filter: 10Hz - 50Hz, Low Pass Filter: 35Hz - 250Hz
Additional Features:
- Remote Bass Knob: For convenient bass level adjustment.
- Fuse Rating: 330A
- Dimensions: 20.47" (L) x 9.37" (W) x 2.71" (H)
Experience the ultimate in car audio with the Down4Sound JP77 RED Amplifier. It's more than just an amplifier; it's a commitment to excellence in sound, all wrapped in a bold red package.
