DS18 Audio

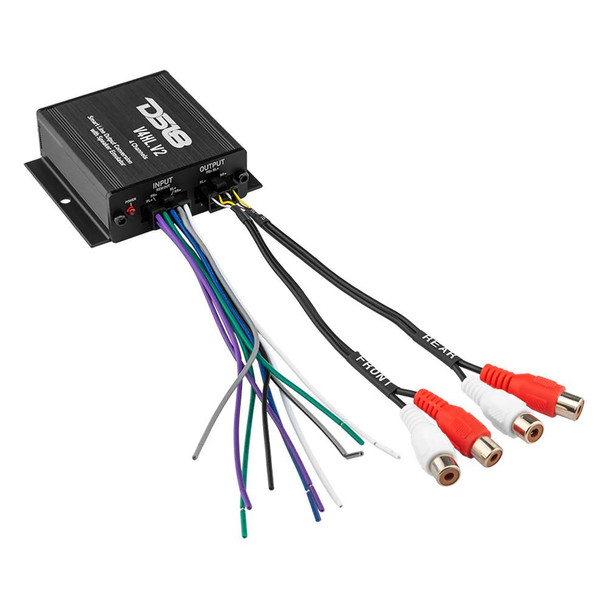

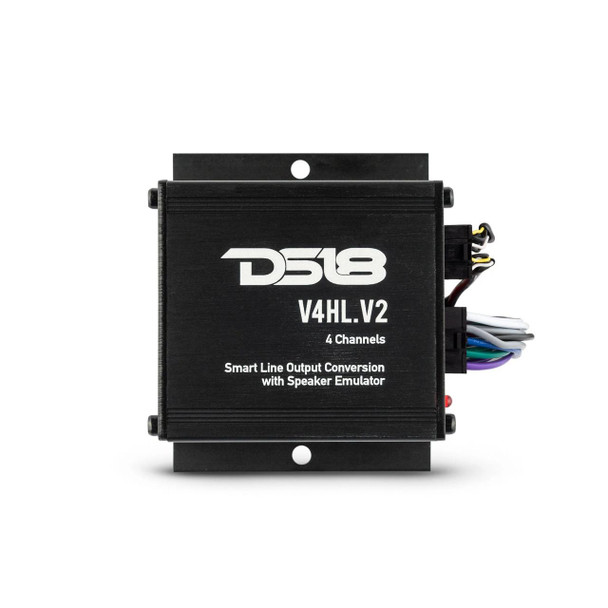

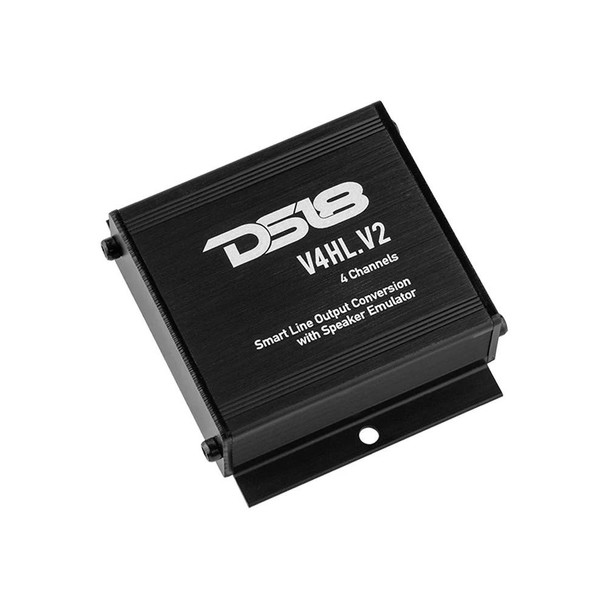

DS18 V4HL Hi/Lo Converter 4-Channel with 12 Volt Trigger Output (Remote out)

(No reviews yet) Write a Review
SKU:
V4HL
  • DS18 Audio DS18 V4HL Hi/Lo Converter 4-Channel with 12 Volt Trigger Output Remote out
  • DS18 Audio DS18 V4HL Hi/Lo Converter 4-Channel with 12 Volt Trigger Output Remote out
  • DS18 Audio DS18 V4HL Hi/Lo Converter 4-Channel with 12 Volt Trigger Output Remote out
  • DS18 Audio DS18 V4HL Hi/Lo Converter 4-Channel with 12 Volt Trigger Output Remote out
  • DS18 Audio DS18 V4HL Hi/Lo Converter 4-Channel with 12 Volt Trigger Output Remote out
  • DS18 Audio DS18 V4HL Hi/Lo Converter 4-Channel with 12 Volt Trigger Output Remote out
$59.95

Description

Having the perfect tools to make your sound system the ultimate music machine is what DS18 has for you. Our crossovers are designed to provide the perfect frequency distribution throughout your system to ensure the clarity and peak efficiency for your acoustic.

Highlights

  • Integrate any amplifier to your existing factory audio system easily
  • 4 channel design that uses hi/lo connections to convert signal to RCA which is the typical input for most aftermarket amps.
Technical Details
Manual

Model: V4HL
Working Voltage: +12V
Input: Sensitivity: 0.1-16V
MAX RCA Output: 4V
Frequency Response: 10Hz - 30KHz
Input Impedance: 20K Ohms
Standby Current: 200 mA
Dimensions: 109 L x 88 W

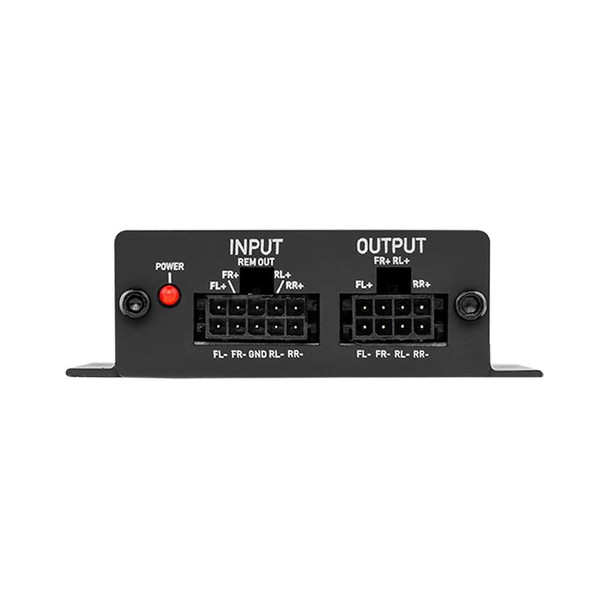

Features: 4 CH High Level Input / 4 CH RCA Output
Surface Mount Component Technology
Direct Insert Power / Speaker Terminal
Lowest Impedance and Best Power Filter
FR4 Double Sides PCB
Remote Trigger Output with Signal Sensing
Power / Clipping LED Indicators
