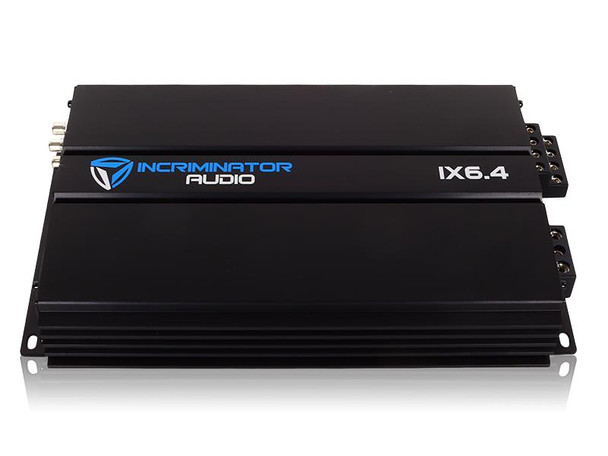

IX6.4 | 4 Channel Amplifier

Improving on the compact amazingness that was the IA6.4, we bring you the all new IX6.4 that takes it to the next level in every sense. In a space of just 11” long, we were able to wring out 150 watts a channel at 4 ohms, and a whopping 500 watts by 2 channels at 4 ohms. That means, you could power a pair of subwoofers with ease, using the IX6.4 if you wanted to. Don’t forget, the IX6.4 comes with a bass remote for just this purpose.

Not wanting a complex set up to deal with? You could use the IX6.4 as a full system solution with components on the front channels, while powering a strong subwoofer bridged on the rear 2 channels.

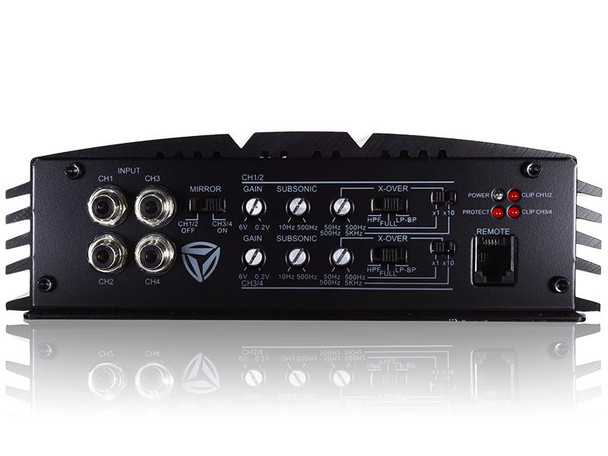

Our amps have always been loaded with features. For example, the IX6.4 comes with a mirror feature where you can match everything you set on channels 1&2, mirrored over to channels 3&4. Another great feature is the separate clipping indicators, one for channels 1&2, and another for channels 3&4. A feature on our IX6.4 that is standard to our multi-channel amplifiers is the fully active capable, crossover network.

We set out to build a high end amp that you can be proud to show off or hide under a seat, an amp that will never come up short on power or features, and an amp that you know it will last a long time.

• Features

  • Full Range Class D Amplifier
  • Dual MOS-FET Pulse Width Modulation Power Supply
  • 2 Ohm Stable Stereo / 4 Ohm Mono Topology
  • 12 dB/octave - Variable State Subsonic Filter
  • 12 dB/octave - Variable State Low / High Pass Filter
  • Flexible Crossover Multipliers X1 / X10

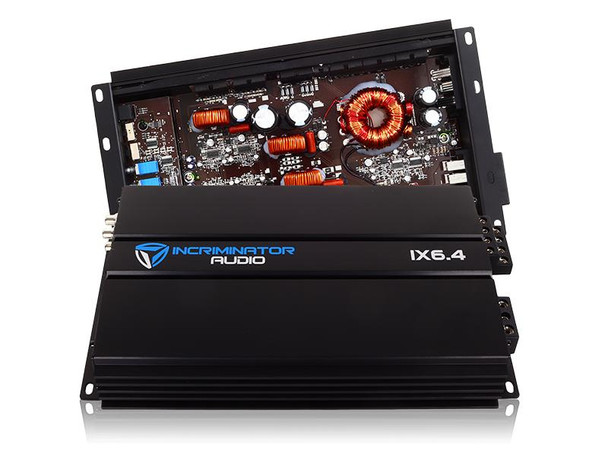

  • Heavy Duty Copper Layer Double Sided Epoxy PCB
  • Mirror Techology (Channel 1/2 to 3/4)
  • Individual Clipping Indicators
  • Multi-Layer Bullet Proof Protection Circuit
  • Wired Remote Control with Clipping Indicator



• Specifications

  • Rated Power ( 14.4V at 1% THD )
  • RMS Power - 4 Ohm Mono : 500W x 2CH Bridged
  • RMS Power - 2 Ohm Stereo : 250W x 4CH
  • RMS Power - 4 Ohm Stereo : 150W x 4CH
  • Low Pass Filter ( 12dB/Oct. ) : 50Hz - 5000Hz ( X1, X10 )
  • High Pass Filter ( 12dB/Oct. ) : 50Hz - 5000Hz ( X1, X10 )
  • Subsonic Filter ( 12dB/Oct. ) : 10Hz - 500Hz
  • Frequency Response ( +/-1dB ) : 20Hz - 28,000Hz
  • Channel Separation : 55dB
  • Input Sensitivity ( Volt +/- 5% ) : 6.0V - 0.2V
  • Signal / Noise Ratio : 92dB
  • Dampening Factor ( 4 Ohm ) : 100 +
  • Operation Mode : Mirror CH1/2 > CH3/4
  • Power Efficiency ( 4 Ohm ) : 90%
  • Fuse Rating ( 14.4V ) : 90A
  • Power Input Connection : 4 Gauge
  • Operation Voltage : 8.5V - 16.0V
  • Speaker Output Connection : 8 Gauge
  • Dimensions ( Inches ) : 7.48 W x 2.24 H x 11.02 L
  • Dimensions (Millimeters) : 190 W x 57 H x 280 L
